| Brand Name : | UNIFORM |
| Model Number : | AUTC-P120V |
| Certification : | CE, FDA, CSA, DROP BALL TEST |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 100,000PCS/Month |
| Delivery Time : | 30-35 days |

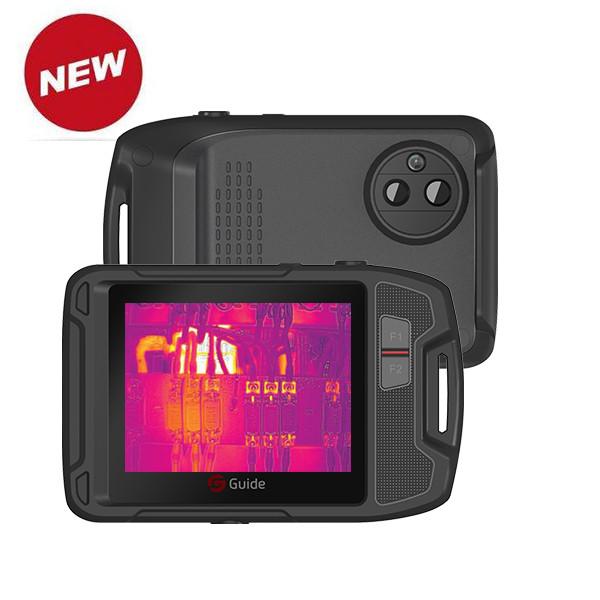

Pocket-Sized Thermal Camera Compact Size, Professional Grade
3.5” Touchscreen Display
High-brightness LCD, 320 x 240 pixels
Smooth zoom, up to 8X
By sliding on the touchscreen, easy to zoom and observe the details of the image.
Android Platform, Intelligent Operation
User-friendly design based on Android system, which is as simple as using a smartphone.
Tripod mount interface
USB Type-c Interface
Support charging by mobile power, Support operating while charging
Shortcut Button for Level-span
Support switching among auto level-span, Semi-auto level-span, and manual level-span.
-20℃-400℃ wide measurement range
GUIDE P120V thermal camera realize Auto switching between-20℃-150℃ and 150℃-400℃,
Powerful Max & Min temperature tracking and alarm functions
Fully radiometric measurement, full screen or target area max & min temp tracking, and full screen max & min temp alarm.
MIF Image Enhancement, Picture-in-picture
Guide’s exclusive MIF multispectral image fusion patent technology supports the fusion of visible image details on thermal image, which will improve comfort of viewing and efficiency.
Picture-in-picture function for better image comparison of thermal image and visible image.
Wi-Fi connectivity , support Cloud Service
Wi-Fi connectivity enabled for remote control and instant sharing. And GUIDE T120V thermal camera support Cloud Album, you can back up the images to the Cloud in real-time.
About the Cloud Service
When you are in severe environment and cannot find and report faults in a timely and effective manner, or need more professional engineers to help you analyze the problem, you can upload the captured pictures to the cloud server anytime and anywhere. Other engineers will log in and download images for analysis and feedback.
| Model | P120V |
| IR image & Optical | |
| IR Resolution | 120×90 @17μm |
| Detector type | VOx/7.5~14μm |
| Frame Rate | 15HZ/9HZ |
| Thermal Sensitivity / NETD | 60 mk |
| Focal Length | 2.28mm/F1.13 |
| Field of view(FOV) | 50°×38° |
| Spatial Resolution(IFOV) | 7.6mrad |
| Focus | Focus-free |
| Visible Camera | |
| Visible Camera Resolution | 320×240, Focus-free |
| Flashlight | Yes(on/off/flash) |
| Image Display | |
| Display | 3.5" LCD touchscreen display |
| Display Resolution | 320×240 |
| Image modes | IR, Visible, Picture-in-Picture, MIF |
| Color Palettes | 6:Hot Iron, Black Heat, Heat Iron, White Heat, Medical, Arctic |
| Digital zoom | Smooth zoon, up to 8X |
| Auto,Semi-automatic, Manual | |
| Temperature Measurement | |
| Measurement Range | -20℃-150℃,100℃-400℃(Auto switching) |
| Accuracy | ±2℃ or ±2%, whichever is greater ( target temp ≥0℃, ambient temp is 15℃ ~ 30℃ ) |
| Measurement Spot | Center spot,and can add one removable measurement spot |
| Measurement Area | Can add one removable area measurment box |
| Auto Max & Min Temp Tracking | Full screen auto max & min temp. tracking |
| Analysis target (area) max & min temp. tracking | |
| Full Screen Max & Min Temp. Alarm | Yes |
| Image Storage | |
| Storage Media | 4G Internal memory,at least 500 sets of images |
| IR Image Format | Full Radiometric (JPG) |
| Visible Image | Yes |
| Connections & Communications | |
| USB | Type-C, for image data transmission with PC |
| WIFI | Yes, Wi-Fi enabled for data transmission |
| Mobile APP | Yes,and support Cloud Service |
| PC IR Analysis Software | Yes |
| Power system | |
| Battery Tpye | Built-in rechargeable li-thium battery, non- removable |
| Battery Operating Time | ≥2 hours(when wifi-off) |
| Charging Time | ≤1.5 hours |
| Environmental parameters | |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Encapsulation | IP54, 1-meter drop test |
| Certification | CE, FCC, ROHS |
| Weight | 240g |
| Size | 133mm*87mm*24mm |
| Standard Accessories | Charger ＋ Adapter, TYPE-C USB cable, Wrist Strap, Pouch, Quick start Guide, Data Download Card |
Certifications
Exhibition
Packing & Delivery
1pc goggles into a clear poly bag, 10pcs into a white box,
10 white boxes into a outer carton, 100pcs into one carton.
|
|
