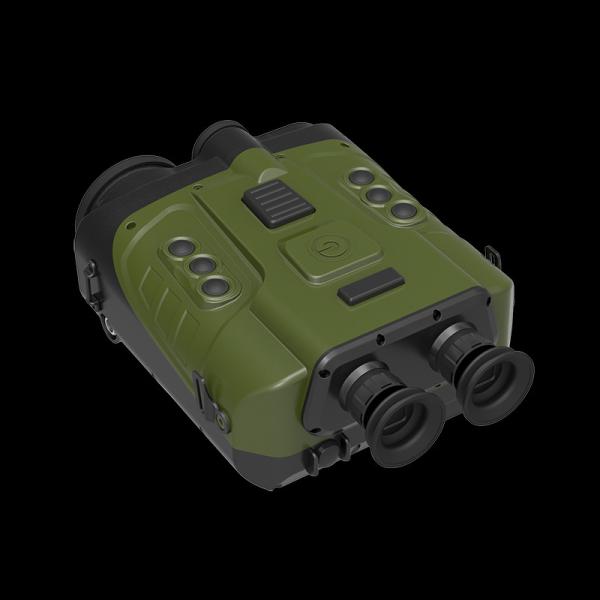

IR5210 Series Multi-functional Cooled Portable Thermal Binoculars
· High resolution thermal imager, high resolution visual camera. Work all day, see through glare
· GPS, electrical compass, eye-safe laser range finder
· Wi-Fi video transfer
· The output image can be displayed on its color OLED display and alternatively on a control & display units connected to a host machine which makes it suitable for complex maneuvers
· User friendly, easy to operate
· Different palette options for the image display make it easier to detect and identify targets in different circumstances
Type | IR5210A | IR5210B | ||
Infrared Thermal Imaging Camera | ||||
Detector Resolution | 320×256,30μm | 640×512,15μm | ||
Spectral Range | 3～5μm | |||
Focus | 30mm～240mm continues | |||
FOV | 18.2°×14.6°～2.3°×1.8°(±5%) | |||
Visible Camera | ||||
Focus | 3.63°×2.86°(±5%) | |||
Resolution | 1920×1080 | |||
Working Range | Detection Range | Recognition Range | ||
1.8m×0.5m Human | >6km | >2km | >8km | >4km |
2.3m×2.3m Vehicle | >9km | >4km | >13km | >7km |
Function | ||||
Position Accuracy | ≤10m(GPS,BDS optional) | |||
Orientation Accuracy | ±0.5°(Root Mean Square) | |||
Ranging | Eye-safe laser range finder Maximum measuring range for a typical target of 2.3m×2.3m:6Km For building: 10km | |||
Range Accuracy | ≤±5m | |||
Wi-Fi | Transfer digital video with Wi-Fi | |||
Image | ||||
Image Enhancement | Auto image filtering and sharpening | |||
Brightness/Contrast | Auto/Manual | |||
Polarity | White-hot, Black-hot, Red-hot, Green-hot, Rainbow, High contrast Rainbow, Blue-red, Amber | |||
Digital Zoom | 2X | |||
Video Storage | Built-in 16G SD card,no less than 9000 compress pictures(JPG)and no less than 2h video(AVI) | |||
View Finder | OLED 1280×1024 , dioptry adjustment | |||
Interface | ||||
Electrical Interface | power,video PAL(NTSC can customizable),communication Rs232,Wi-Fi,USB,built-in GPS(external connection) | |||
Mechanical Interface | 1/4 inch standard interface | |||
Power | ||||
Power Input | 12V power adapter or 18650 battery, voltage input range12V-32V | |||
Continuous Working Time By Battery | ≥4h(do not change battery) | |||
Environment Parameters | ||||
Working Temperature | －40℃～60℃(Except for display equipment) | |||
Encapsulation | IP67 | |||
Electromagnetic Compatibility | GJB 151A-97 | |||
Physical Characteristics | ||||
Weight | ≤3.7kg(including battery) | |||
Size | ≤315mm×250mm×118mm | |||
Attention:The working condition is: visibility, no less than 15km;humidity, no more than 80%;and the target with background temperature difference, no less than 4℃. | ||||
Certifications
Exhibition
Packing & Delivery
1pc goggles into a clear poly bag, 10pcs into a white box,
10 white boxes into a outer carton, 100pcs into one carton.
|
|
